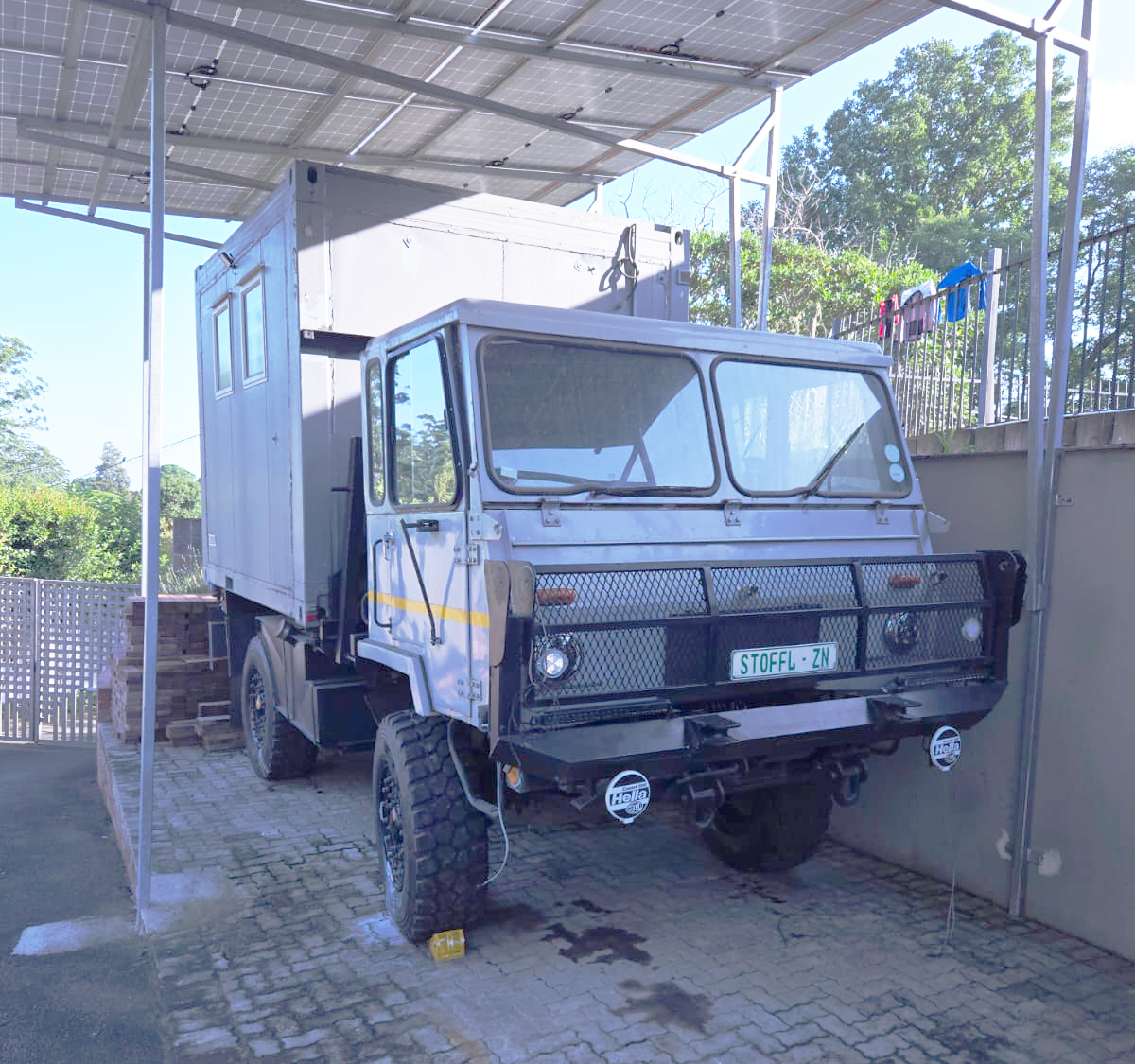

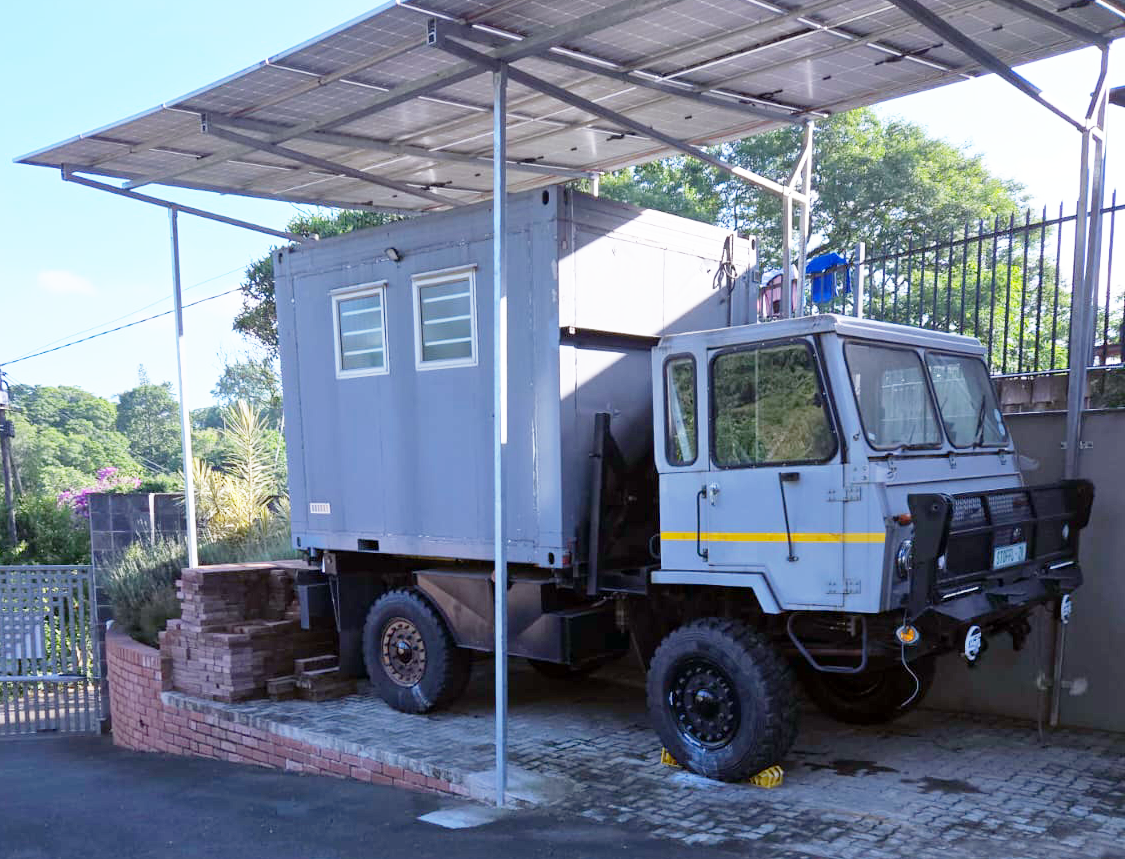

Samil 20 4x4 Mobile Expedition Vehicle - R600 000.00 not negotiable.
Heavy-duty off-road camper
Introducing the SAMIL 20 4×4: the pinnacle of off-road engineering.
Equipped with differential locks on both the transfer case and axles, this vehicle boasts a compact wheelbase and a towering 460mm ground clearance, enabling it to conquer terrains that challenge lesser 4x4s. Originally designed for the South African military, SAMIL trucks are renowned for their durability, adaptability, and reliability.
Embark on your ultimate off-road adventure with our Mobile Expedition Vehicle! This rugged explorer is equipped with a durable camper unit, perfect for extended journeys into the wild. Designed for the modern adventurer, it offers unmatched reliability and comfort to ensure your travels are both thrilling and safe. The spacious interior and powerful performance make it your ideal companion for any expedition. Get ready to explore beyond the beaten path in style and comfort!
Contact Us to Strike-A-Deal - specialvehicles@seriesranch.com
Permanent 4-wheel drive
2-ton off-road payload
Differential locks on the transfer box and both axles
460mm ground clearance
Proven performance in combat conditions
Drive
4×4
Engine
Make/Model: ADE352 = SAMIL 20 Mk2
Type: Inline 6-cylinder, 4-stroke cycle, naturally aspirated diesel engine
Displacement: 5.675 liters (346 cubic inches)
Bore: 97.0 mm (3.819 inches)
Stroke: 128.0 mm (5.04 inches)
Compression Ratio: 17.0:1
Power: 94 kW (126 hp) at 2800 rpm
Torque: 375 Nm (277 lb-ft) at 1500 rpm
Weight: Approximately 445 kg (980 lbs)
Dimensions: Length - 1075 mm (42 inches), Width - 630 mm (25 inches), Height - 875 mm (34 inches)
Clutch
Type: Single dry plate
Size: 310 mm
Gearbox
Make/Model: ZF S5-35
No. fwd gears: 5 Speed Synchromesh
Transfer Case
Make/Model: ZF Z65
Type: 2 Speed, Permanent 4×4
Differential Lock: Pneumatically operated
Axles
Front Axle: Full floating, double reduction
Differential Lock: Pneumatically operated
Rear Axle(s): Full floating, double reduction
Differential Lock: Pneumatically operated
Wheels & Tyre
No.: Singles all-round
Size: 14.5 x 20” – 12 Ply
Steering
Type: Rhd – Power Assisted
Brakes
Service Brakes: Dual Circuit – air over hydraulics
Park Brake: Pneumatically Operated
Suspension
Springs: Semi elliptical leaf springs
Shock absorbers: Double acting telescopic hydraulic (Ft & Rr)
Electrical System
Voltage: 24V
Batteries: 2 x 12V 120 A/h

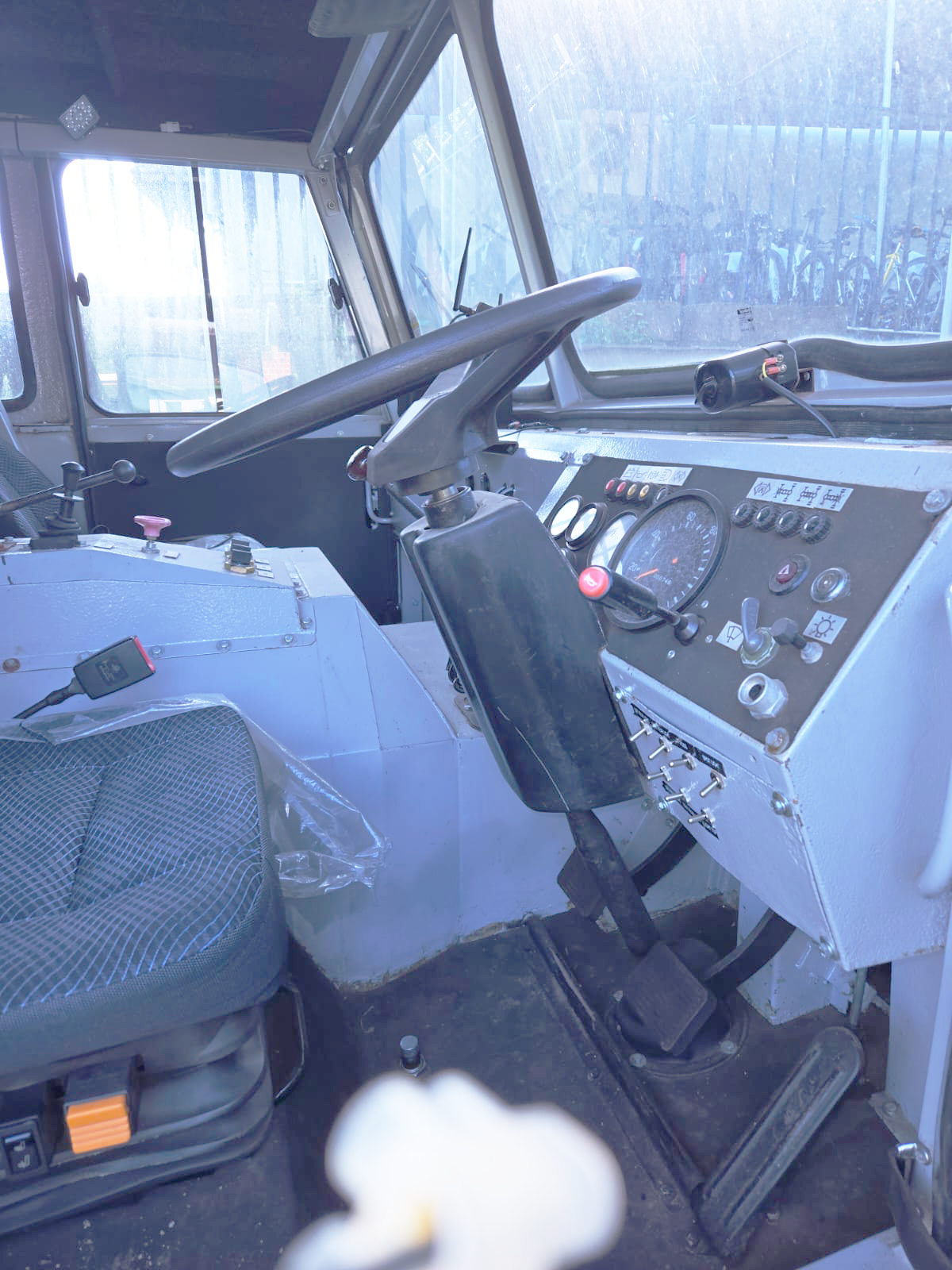

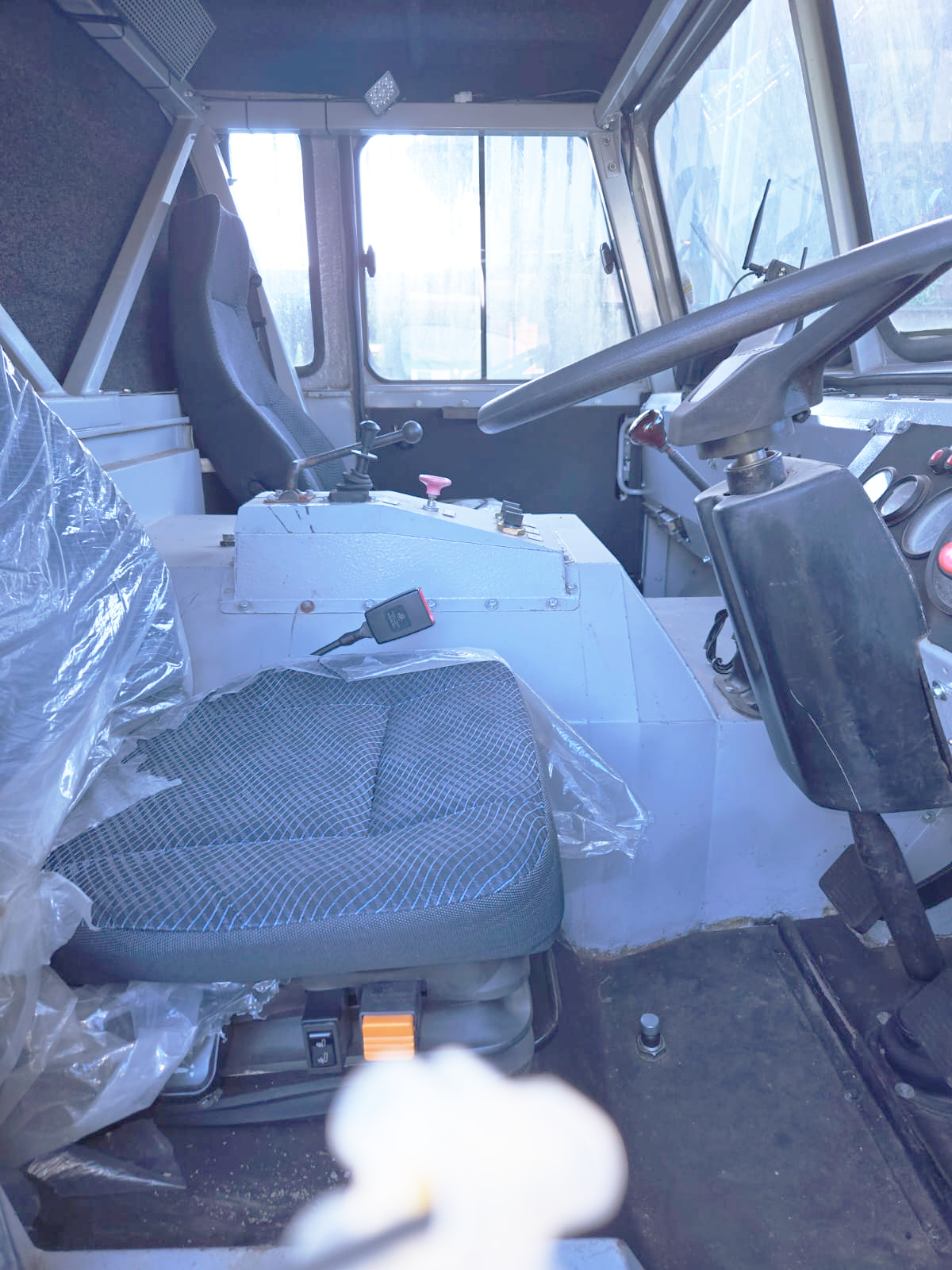

Cab
Type: Forward Control
Seating: Driver + 1 Assistant
Access to Engine: Cab tilts forward
Overall Length
5340 mm
Overall Width
2300 mm
Overall Height
2800 mm
Wheelbase
2900 mm
Ground Clearance
460 mm
Track (Front)
1894 mm
Track (Rear)
1936 mm
Angle of Approach
36°
Angle of Departure
40°
Fuel Tank Capacity
200 L
GVM
7700 kg
Front Axle Rating
3700 kg
Rear Axle Rating
4000 kg
GCM
14000 kg
Payload
±3000 kg
